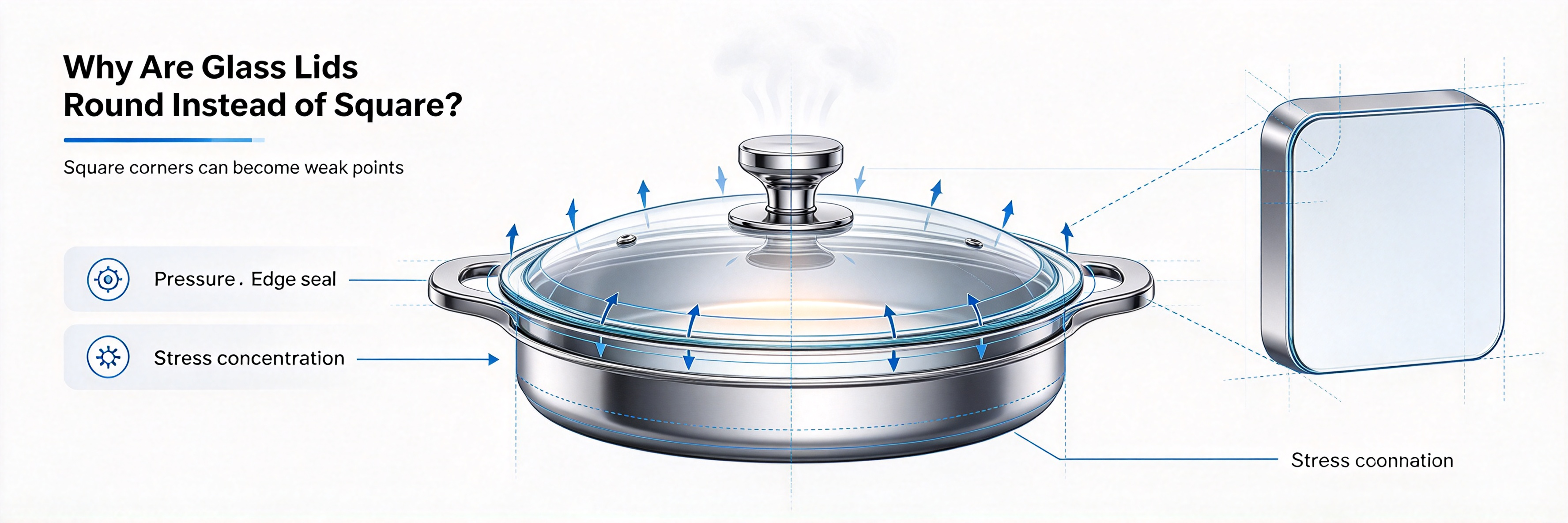

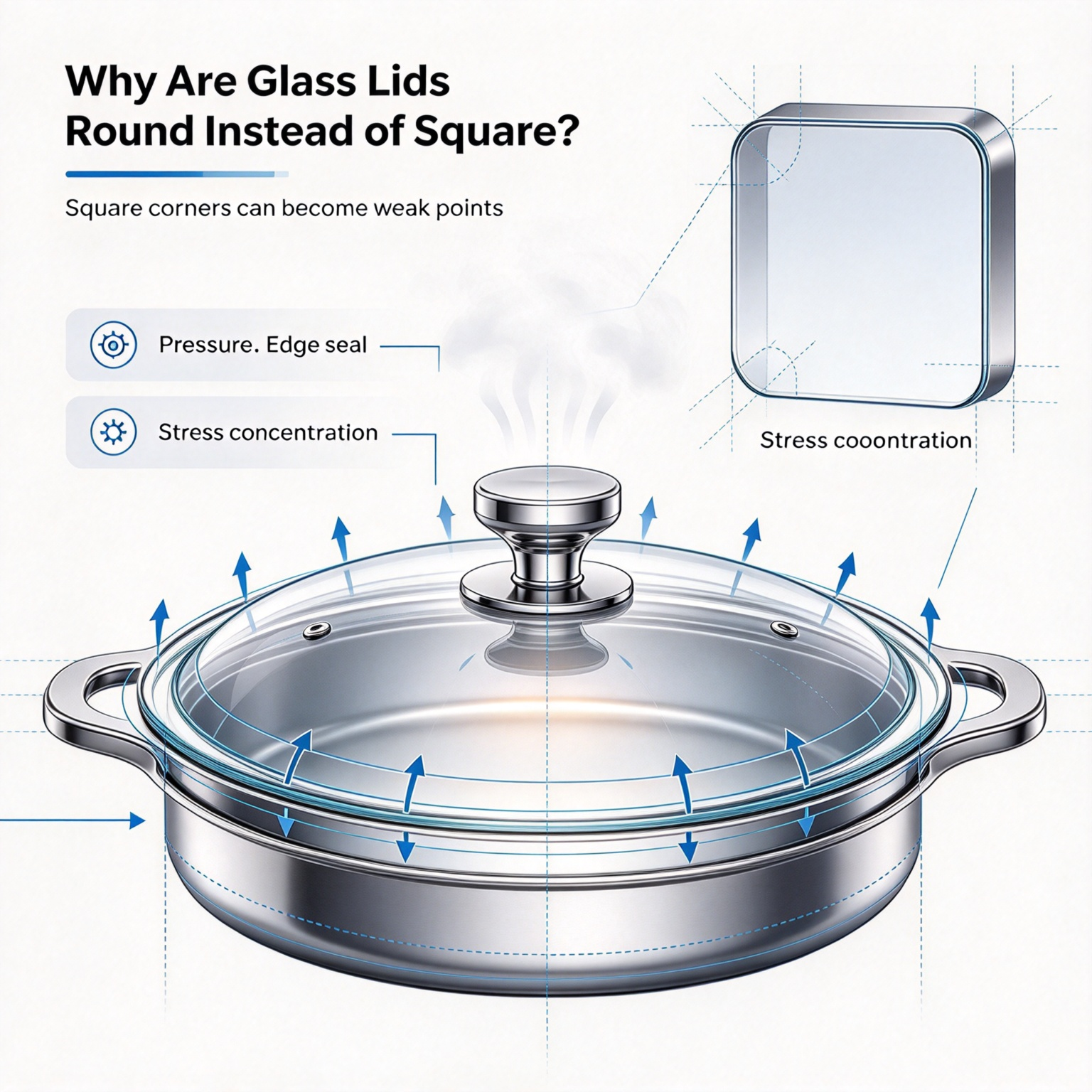

Glass lids are round first because pots are round — a lid has to match the opening it covers. But there's a second, less obvious reason that makes round the smart shape for glass in particular: glass is a brittle material, and brittle materials tend to fail at sharp corners. A circle has no corners at all, which means there's nowhere for stress to pile up.
The obvious reason needs little explanation: most pots and pans are round, so their lids are too. The hidden reason is structural, and it's the part worth understanding — because if glass lids were square, the glass itself would be weakest in exactly the places that matter most.
Engineers call the effect stress concentration. When a load is applied to an object, the stress doesn't spread out evenly — it piles up at sudden changes in geometry, such as sharp internal corners, holes, abrupt changes in thickness, and unintentional damage like nicks, scratches, and cracks. A tough, ductile material can absorb some of that concentrated stress by yielding slightly. A brittle material can't, and brittle materials will typically fail right at the stress concentration. Glass is about as brittle as everyday materials get, so a sharp corner in a piece of glass behaves a lot like a built-in scratch: a spot where a crack can start.
Patent research on strengthened glass gives a striking look at this. In a computer-modeled study of 2 mm strengthened glass sheets, sharp corners showed very high tensile stress — about 145 MPa near the corner — with an uneven stress distribution along the edge. Rounding the corners pushed that high-tension zone away from the corner and left the protective compression layer essentially uniform in thickness. A separate patent measured how much the protective compressive stress drops right at the corner itself: about 22% lower at a sharp corner, about 16% with a small chamfer, and only about 4% when the corner was rounded with a radius equal to a quarter of the glass thickness.
One honest caveat: these figures come from studies of strengthened cover glass for electronic devices, not cookware lids, so treat the numbers as an illustration of the principle rather than a specification for a lid. The pattern is what matters — protective compression thins out at sharp geometry, and sharp geometry concentrates load.
Another patent studied glass held inside a metal holder — the same basic arrangement as a glass lid seated in its rim. Its findings line up with the same story: moving from sharp corners to rounded corners relieved stress, tensile stress on the glass surface grew as the rectangle got longer relative to its width, and switching from a rounded rectangle to a pill shape cut the stress in the glass by orders of magnitude. Pill-shaped glass also carried a risk of deforming its metal holder in the same range as circular glass. In other words, the fewer corners and abrupt changes a shape has, the happier the glass is.
Here's the engineering logic that follows (this part is reasoning rather than a cited measurement): a metal rim rolled or stamped around a circular edge grips the glass with the same geometry all the way around, so the compressive force is applied consistently. There's no corner where the grip has to change character. That's the same compression-and-buffering effect we describe in our breakdown of why stainless steel rim glass lids outlast all-glass lids, and a circle happens to be the shape that lets it work most evenly.
Yes. Rectangular and square glass covers exist for roasting pans and baking dishes. Where they do, they typically use rounded corners rather than sharp ones — which is consistent with everything above. A rounded corner is a compromise: it lets you cover a rectangular dish while shedding as much of the corner penalty as possible.
Because a circle looks the same from every direction, one number — the diameter — describes a round lid completely. That same property is what makes the stepped-ring trick behind a universal lid for pots and pans work: each ring is a full circle that can meet a round pot rim at every point around its circumference. There's no equivalent trick for a square, because a square pot has no single "size" a nested set of rings could step through.
Factor | Round Glass Lid | Square Glass Lid |
|---|---|---|
Corners | None — no built-in stress concentration point | Four corners where stress gathers |
Protective compression (strengthened glass studies) | Uniform along the edge | Thins at sharp corners (about 22% lower in one study) |
Rim grip | Same geometry all the way around | Has to handle four corner transitions |
Sizing | One measurement (diameter) | Two measurements plus corner radius |
Universal/adjustable designs | Possible (concentric rings) | Impractical |
We've made tempered glass lids since 2003, and while our range includes shaped lids alongside the standard round ones, the round lid remains the baseline for a reason the science makes clear: it's the shape with the fewest built-in weak points. Understanding why round works is what informs how we think about any non-round design. Every lid we produce is backed by LFGB and FDA testing, our facility is ISO 9001 and BSCI certified, and this is the foundation behind our work supplying cookware brands including Calphalon, Tefal, WMF, Fissler, and Supor.
Q: Are glass lids round only because pots are round? A: Mostly, yes — but shape also matters structurally, because corners concentrate stress in a brittle material like glass, and a circle has none.
Q: Why are corners weak points in glass? A: Load piles up at sharp geometry, and brittle materials usually fail at those points rather than yielding, so a sharp corner can act like a built-in flaw.
Q: Can a glass lid be square? A: Yes — rectangular and square glass covers exist for dishes and pans, and well-designed ones typically use rounded corners to reduce the stress that sharp corners would create.
Q: Does tempering fix the corner problem? A: It helps a great deal, but studies of strengthened glass show the protective compression can thin out at sharp corners (about 22% lower in one study), which is why rounding corners still matters.
