Rimless Glass Lid: Performance and Manufacturing

Product Definition

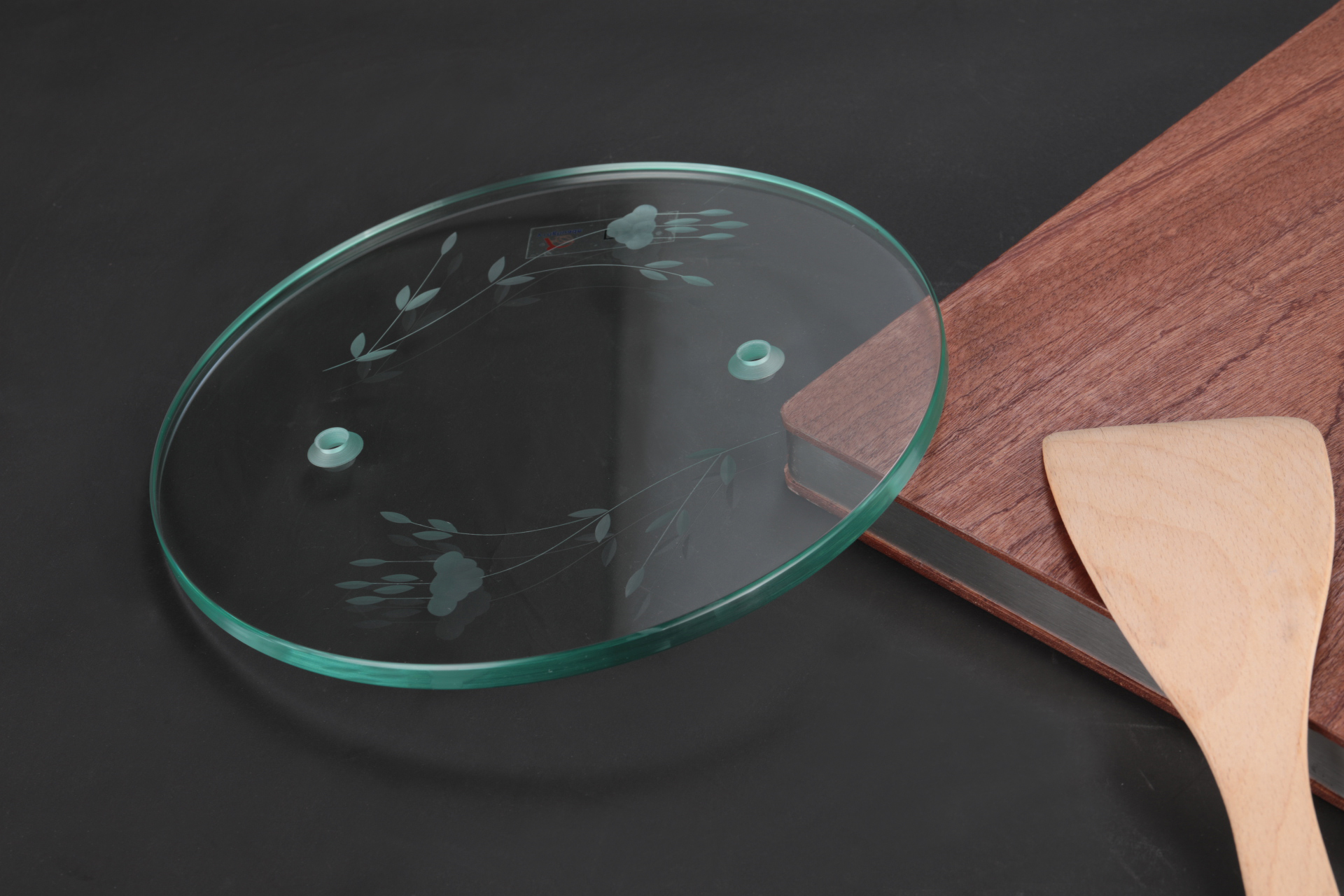

A rimless tempered glass lid is manufactured from a single piece of tempered glass without a traditional stainless steel rim. The edge is smoothly polished and rounded, offering a clean, minimalist appearance.

Advantages

• Hygienic Design – With no gap between glass and metal, grease and residue accumulation is eliminated. The lid can be easily rinsed clean.

• Reduced Weight – The absence of a metal rim results in a lighter product, facilitating easier handling and cleaning.

• Aesthetic Appeal – The fully transparent, rimless design provides a modern look and allows visual monitoring of the cooking process without lifting the lid.

• Improved Durability – Unlike traditional rimmed lids, there is no risk of the metal rim loosening due to repeated thermal expansion and contraction.

Considerations and Limitations

Usage Considerations

• Edge Sensitivity – The edge remains the most vulnerable part of any glass product. Impact against hard surfaces (e.g., sink edges, stovetop corners) may cause chipping or cracking.

• Thermal Shock Susceptibility – Rapid temperature changes should be avoided. Pouring cold water onto a hot lid may lead to breakage. Natural cooling or washing with warm water is recommended.

• Sealing Performance – Unless equipped with an integrated silicone sealing ring, the lid may not achieve the same level of airtightness as a traditional rimmed lid.

Manufacturing Complexities (Contributing to Higher Cost and Lower Availability)

• Edge Finishing Requirements – Raw cut edges must be precision-ground into a rounded profile. Any residual defect may cause breakage during the tempering process, resulting in a high rejection rate.

• Increased Material Thickness – While standard glass lids typically have a thickness of 3–4 mm, rimless designs require a minimum of 5 mm to compensate for the lack of a metal rim, thereby increasing material costs.

• Stringent Tempering Process – The glass is heated to approximately 600–700°C and then rapidly cooled. Uniform temperature distribution is critical, and the inherent self-explosion rate (1‰–3‰) must be tightly controlled.

Selection Guidelines

• Edge Inspection – Verify that the edge is smooth and rounded, not sharp.

• Sealing Preference – For applications requiring enhanced sealing (e.g., stewing), select a lid equipped with a transparent silicone sealing ring on the inner edge.

• Handle Evaluation – Choose lids with heat-resistant handles made of materials such as bakelite or stainless steel with cool-touch features.

Manufacturer Profile

Jiangmen Yinghuade Technology Industrial Co., Ltd. (Yinghuade) is a specialized manufacturer of rimless tempered glass lids. Utilizing either silicone overmolding or all-glass forming processes, the company produces over 33 million lids annually and supplies international brands including Calphalon and WMF. Yinghuade represents a reliable source for high-quality rimless glass lids, though its primary sales channels are business-to-business, with limited direct retail availability.

Summary

The rimless tempered glass lid offers a combination of lightweight construction, ease of cleaning, and modern aesthetics suitable for daily cooking applications. However, users should exercise care to avoid edge impact and sudden thermal shock. For optimal quality, attention should be given to edge finishing and the presence of a silicone sealing ring, and reputable manufacturers such as Yinghuade are recommended.
