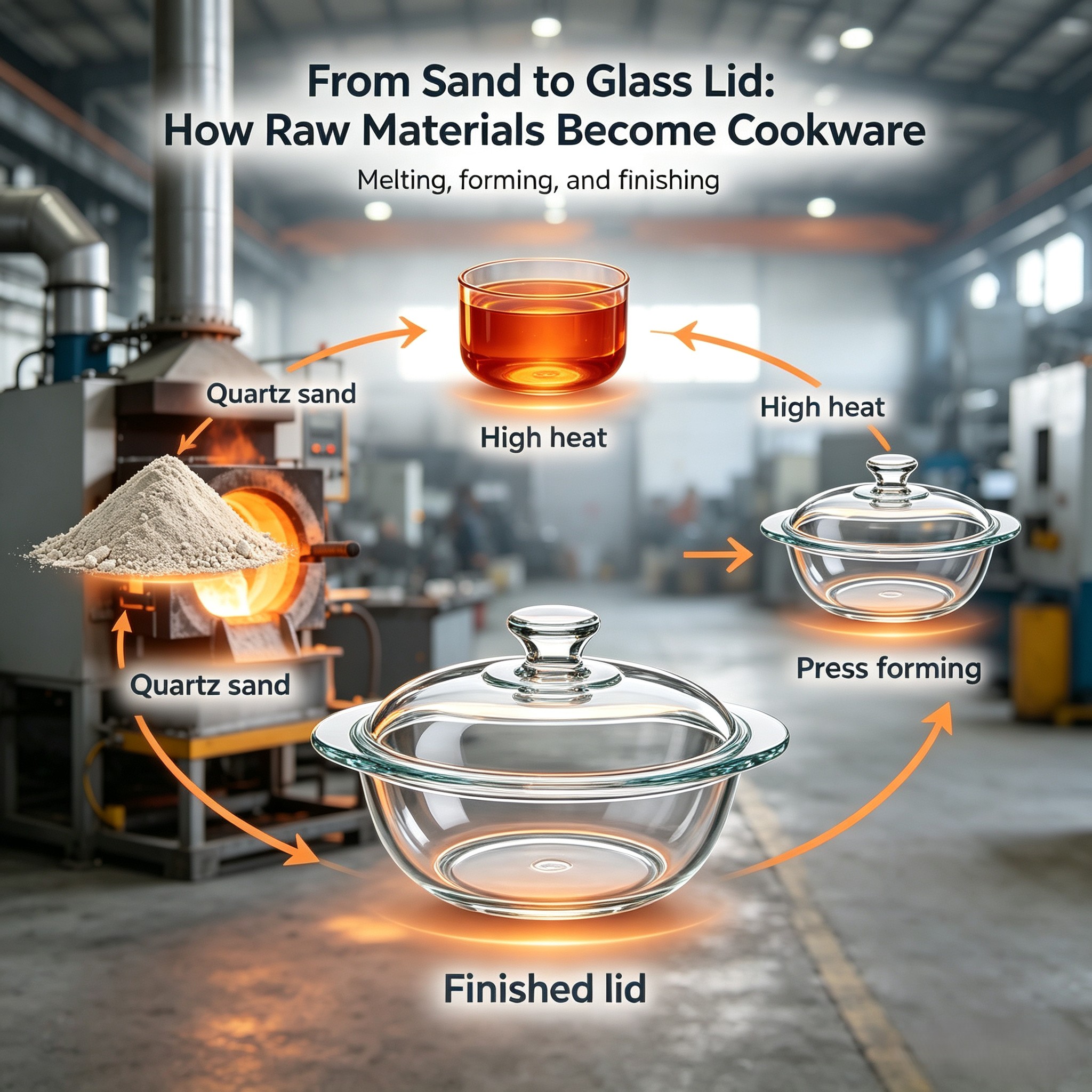

The glass lid sitting on your pot right now was, at some point, a pile of sand that looked no different from what you'd find at a beach. Getting from that raw material to a clear, heat-resistant, precisely sized piece of cookware takes roughly seven distinct stages, several of them involving temperatures well over 1,000°C, and at least one genuinely clever piece of 20th-century engineering that changed the entire glass industry. Here's what actually happens along the way.
The process starts with mixing silica sand, soda ash, and limestone in carefully controlled proportions — the same core recipe behind virtually all soda-lime glass. Manufacturers also mix in cullet, which is broken or recycled glass, alongside the virgin raw material. Cullet isn't a filler; it actually helps the batch melt at a lower temperature and reduces the overall energy needed for the next stage, which is why recycled glass content is a genuine efficiency factor in production, not just a sustainability talking point.
The batched raw materials are fed into a furnace and melted at temperatures typically in the range of 1,500–1,600°C — hot enough to fully liquefy the mixture into a homogeneous molten glass, free of the sand grains and separate mineral particles it started as. At this stage, the material has no shape of its own yet; it's simply a very hot, very viscous liquid waiting to be formed.
This is the stage most people have never heard of, and it's genuinely worth knowing about. Until the late 1950s, making flat glass with truly parallel, distortion-free surfaces was slow and expensive, typically requiring separate grinding and polishing steps. In 1959, a company called Pilkington launched what's known as the float glass process: molten glass is poured onto the surface of a bath of molten tin, where it literally floats. Because both materials are liquid and gravity pulls everything flat and level, the glass naturally forms an almost perfectly flat ribbon with parallel top and bottom surfaces, without any mechanical grinding at all. This single innovation was significant enough that float glass rapidly became the dominant method for producing flat glass worldwide, and it's the quiet reason a modern glass lid has the kind of clean, distortion-free surface that older glassmaking methods struggled to achieve economically.
The still-hot glass ribbon then passes through a long annealing chamber called a lehr, where it's cooled in a slow, carefully controlled manner rather than left to cool naturally. Uncontrolled cooling would leave uneven internal stress trapped in the glass, making it prone to unpredictable cracking later. By the time the glass exits the annealing lehr, its temperature has typically dropped to somewhere around 50°C, and the internal stress has been relieved enough for the glass to be safely cut and handled in the next stage.
Once cooled, the glass is cut to the dimensions needed for a specific lid diameter — either through a traditional score-and-break method or, increasingly, precision laser cutting for tighter tolerances. The cut edges are then ground and finished to remove sharp burrs and smooth the profile, a step that matters more than it might seem: as we've covered in our piece on the physics of why glass lids crack, this is exactly the stage where microscopic surface flaws are most likely to form, which is why edge-finishing quality has a real, measurable effect on how the glass performs for the rest of its life.
The cut, shaped glass panel is reheated to somewhere around 600–700°C — close to its softening point — and then rapidly cooled through high-pressure air quenching. This locks the glass surface into a state of permanent compression while the interior remains in tension, which is what gives finished tempered glass its dramatically higher resistance to impact and thermal shock compared to the untreated glass it started as just minutes earlier.
Only after tempering is the glass ready for its rim — stainless steel formed by rolling or stamping, or silicone applied through injection molding — along with a handle or knob. This is a genuinely separate manufacturing discipline from glassmaking itself, and it's where a lid's real-world durability and finish quality get decided, something we walk through in more detail in our overview of how a custom glass lid actually goes from design to mass production. A manufacturer that controls both the glass process and the rim process in-house can coordinate the two far more tightly than one outsourcing either step separately.
Stage | What Happens | Approximate Temperature |
Batching | Sand, soda ash, limestone, and cullet mixed | Room temperature |
Melting | Raw materials liquefied into molten glass | ~1,500–1,600°C |
Float process | Molten glass floats on molten tin to form a flat ribbon | ~1,000°C+ at entry |
Annealing | Slow, controlled cooling to relieve internal stress | Cools to ~50°C |
Cutting & shaping | Glass cut and edge-finished to lid dimensions | Room temperature |
Tempering | Reheated and rapidly quenched for strength | ~600–700°C |
Rim forming & assembly | Metal or silicone rim and handle attached | Room temperature |
Understanding this full journey — not just the tempering step most people think of first — is exactly why we've kept both the glass process and the rim-forming process in-house since 2003, rather than treating them as separate outsourced steps to be assembled at the end. If you'd like to see what that level of process control actually looks like in a finished product, our tempered glass lid collection reflects every stage described above, from raw material through final assembly, backed by LFGB and FDA testing at each finished batch. This integrated approach is part of the foundation behind our work supplying cookware brands including Calphalon, Tefal, WMF, Fissler, and Supor.
Q: How many stages does it take to turn raw sand into a finished glass lid?
A: Roughly seven distinct stages — batching, melting, forming (typically via the float process), annealing, cutting and shaping, tempering, and rim forming/assembly.
Q: What is the float process, and why does it matter for a glass lid?
A: It's a manufacturing method, launched in 1959, where molten glass floats on molten tin to form a naturally flat, distortion-free ribbon without mechanical grinding — it's the reason modern glass has the clean, even surface quality lids depend on.
Q: Why is cullet (recycled glass) added during batching?
A: It lowers the melting temperature needed for the batch and reduces overall energy use, making it a genuine efficiency factor in production, not just an environmental add-on.
Q: Does tempering happen before or after the glass is cut to its final lid shape?
A: After — glass is cut and shaped first, then reheated and rapidly cooled during tempering, since tempering has to be done on the glass in its final form and dimensions.
